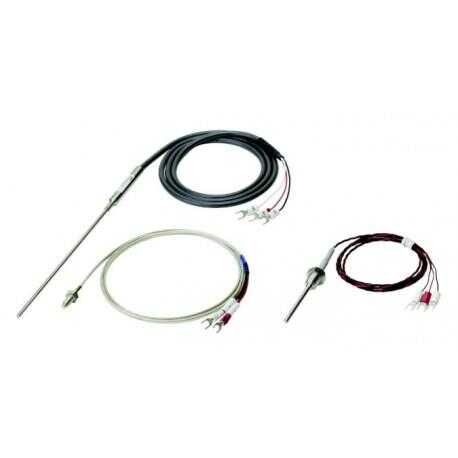

Accurately Measure Seal Temperature. Temperature Sensors for Packaging Machines. • Heat resistance (up to 375°C) and direct installation to heat bars. • Protective tubing diameter of 1 mm for high-speed response. • Usage together with the automatic filter adjustment function of E5D Digital Temperature Controllers is recommended. Ordering information Specifications Dimensions (Unit: mm) E52-ETJ1-120-2-P-A E52-ETJ1-100-2-P-B Sensor type Sensing tube Temperature sensor range Cable length Order code Diameter Length Thermocouple J 1mm 120mm –80…600°C 2000 mm E52-ETJ1-120-2-P-A 100mm 0…760°C E52-ETJ1-100-2-P-B E52-ETJ1-120-2-P-A E52-ETJ1-100-2-P-B Calibration/accuracy EN 60584 class 2 Operating temperature range –80…600°C - Sensors head 0…760°C - Sensors head –80…350°C - Transition sleeve –20…375°C. - Transition sleeve 0…400°C - Cable –50…260°C - Cable Measuring point Isolated (ungrounded) Minimum bending radius 3 times the diameter 2 times the diameter Sheath material AISI 316 Cable material Fiberglass Kapton*1 *1. This material has no Volatile Compounds, water nor organic, when exposed to 105°C; this material is classified as 0% VOC. 120 30 Dia. 4 Dia. 1 2000 Round tip Heat shrink tag Dia. 5 100 100 2000 20 76 Dia. 1 E52 2 Installation Method A Temperature Sensor for Packing Machines has a diameter of 1.0 mm. To measure the temperature close to the seal surface, mount the Sensor as close as possible to the surface. The following installation methods are assumed. Use the following brackets or the equivalent to mount a Temperature Sensor for Packaging Machines to a hot plate. Note: All of the above mounting brackets are SUS304. Mounting bracket Application Manufacturer Model number (1) 1-mm-dia. protective tube bracket Misumi Corporation Square Shims ASFCS-series (2) Sleeve bracket (S1) Misumi Corporation Cable Clips COPU3-20P Digi-Key Cable Clamp RPC1156-ND Sleeve bracket (S2) Misumi Corporation Cable Clips COPU4-20P Digi-Key Cable Clamp RPC1474-ND To correctly measure the surface temperature, the following installation conditions are recommended. Enlargement Bend to a radius of 3 mm or larger. Insert the end by 8 mm or longer. Approx. 1 to 3.5 mm Heater Example 2: Groove for Temperature Sensor created in heating plate and Temperature Sensor secured with a cover. Example 3: Lateral hole for the Temperature Sensor created in the heating plate and the Temperature Sensor inserted into it. Example 1: Groove for Temperature Sensor created in heating plate and Temperature Sensor secured with mounting brackets. There is a temperature sensing element at the tip of the Sensor. Always press the tip against the heating plate. Always insert the Temperature Sensor all the way to the surface of the packing material. (2) (1) Authorized Distributor: In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company OMRON ELECTRONICS LLC 2895 Greenspoint Parkway, Suite 200 Hoffman Estates, IL 60169 U.S.A. Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 Regional Headquarters OMRON EUROPE B.V. Wegalaan 67-69, 2132 JD Hoofddorp The Netherlands Tel: (31)2356-81-300/Fax: (31)2356-81-388 Contact: www.ia.omron.com Kyoto, JAPAN OMRON ASIA PACIFIC PTE. LTD. No. 438A Alexandra Road # 05-05/08 (Lobby 2), Alexandra Technopark, Singapore 119967 Tel: (65) 6835-3011/Fax: (65) 6835-2711 OMRON (CHINA) CO., LTD. Room 2211, Bank of China Tower, 200 Yin Cheng Zhong Road, PuDong New Area, Shanghai, 200120, China Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200 Cat. No. H14E-EN-01 0617 (0617)
