Gelince Sizi Arayalım| Range | Multi9 |
|---|---|

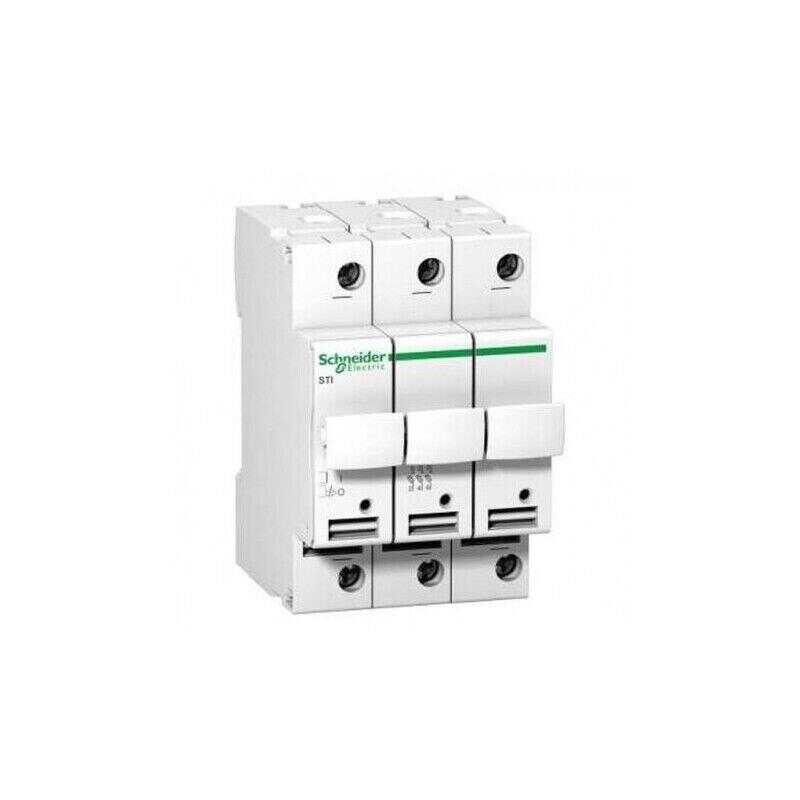

| product name | Multi9 STI |
| Product or component type | Fuse-disconnector |
| Device short name | STI |
| Poles description | 3P |
| [In] rated current | 2 A 4 A 6 A 10 A 16 A 20 A 25 A |
|---|---|
| fuse curve | GG AM |
| Fuse size | 10.3 x 38 mm |
| [Ue] rated operational voltage | 500 V AC |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Height | 81 mm |
| Width | 54 mm |
| Depth | 75 mm |
| Colour | Grey |
| Connections - terminals | Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.33…6 mm² flexible |
| Tightening torque | 2 N.m |
| Standards | IEC EN 60947-3 |
|---|---|
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 5.2 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 0.17 kg |
| Warranty | 18 months |
|---|
