Gelince Sizi Arayalım| Range of product | Clario |
|---|---|
| Range | Clario |

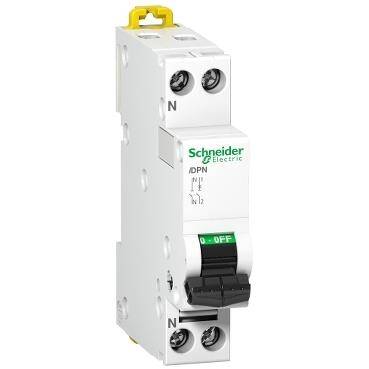

| Product name | IDPN |
| Product or component type | Miniature circuit-breaker |
| Device short name | IDPN |
| Device application | Distribution |
| Poles description | 1P + N |
| Number of protected poles | 1 |
| Neutral position | Left |
| [In] rated current | 2 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 4500 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 230 V AC 50/60 Hz between phase and neutral |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 4500 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 400 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 78 mm |
| Net weight | 115 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminals downstream 0.33…10 mm² flexible Tunnel type terminals downstream 0.75…16 mm² rigid Tunnel type terminals upstream 0.33…10 mm² flexible Tunnel type terminals upstream 0.75…16 mm² rigid |
| Wire stripping length | 13 mm |
| Tightening torque | 2 N.m |
| earth-leakage protection | Separate block |
| Standards | EN/IEC 60898-1 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 115.41 g |
| Warranty | 18 months |
|---|
