Aksesuar
Aksesuar
| seri | ComPacT |
|---|---|
| Ürün serisi | ComPact NSX100...250 ComPacT NSX100...250 new generation ComPact NSX400...630 ComPacT NSX400...630 new generation ComPact NSX100...250 DC ComPacT NSX100...250 DC new generation ComPact NSX100...250 DC PV ComPacT NSX100...250 DC PV new generation ComPact NSX400...630 DC ComPacT NSX400...630 DC new generation ComPact NSX400...630 DC PV ComPacT NSX400...630 DC PV new generation |

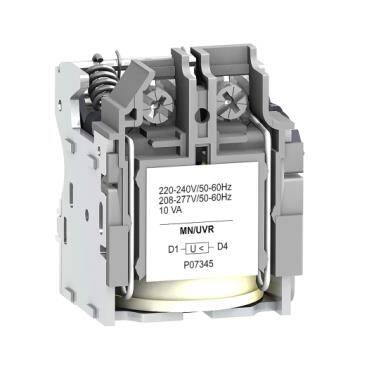

| Ürün grubu | MN |
| Ürün ya da bileşen tipi | Gerilim bobini |
| cihaz uygulaması | Kontrol |
| Bobin gerilimleri | Açma bobini Düşük gerilim bobini |
| kontrol devresi gerilimi | 24 V DC |
| seri uyumluluğu | ComPacT new generation (ComPacT NSX new generation) ComPacT new generation (ComPacT NSX DC new generation) Compact (Compact NSX) Compact (ComPact NSX DC) Easypact (EasyPact CVS) PowerPact (PowerPact Multistandard) |
| Operating threshold | 0,35...0,7 x Un açma 0,85 x Un kapama |
|---|---|
| yanıt süresi | 50 ms |
| besleme tutma gücü | 5 W |
| besleme kalkış gücü | 10 W |
| yardımcı bağlantı terminali | Spring 0,5…1,5 mm² (AWG 20...AWG 16) |
| tel sıyırma uzunluğu | 7 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4,4 cm |
| Package 1 Width | 4,5 cm |
| Package 1 Length | 6,2 cm |
| Package 1 Weight | 116,0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7,3 cm |
| Package 2 Width | 10,5 cm |
| Package 2 Length | 23,6 cm |
| Package 2 Weight | 1,208 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30,0 cm |
| Package 3 Width | 30,0 cm |
| Package 3 Length | 40,0 cm |
| Package 3 Weight | 7,633 kg |
| Garanti | 18 months |
|---|
