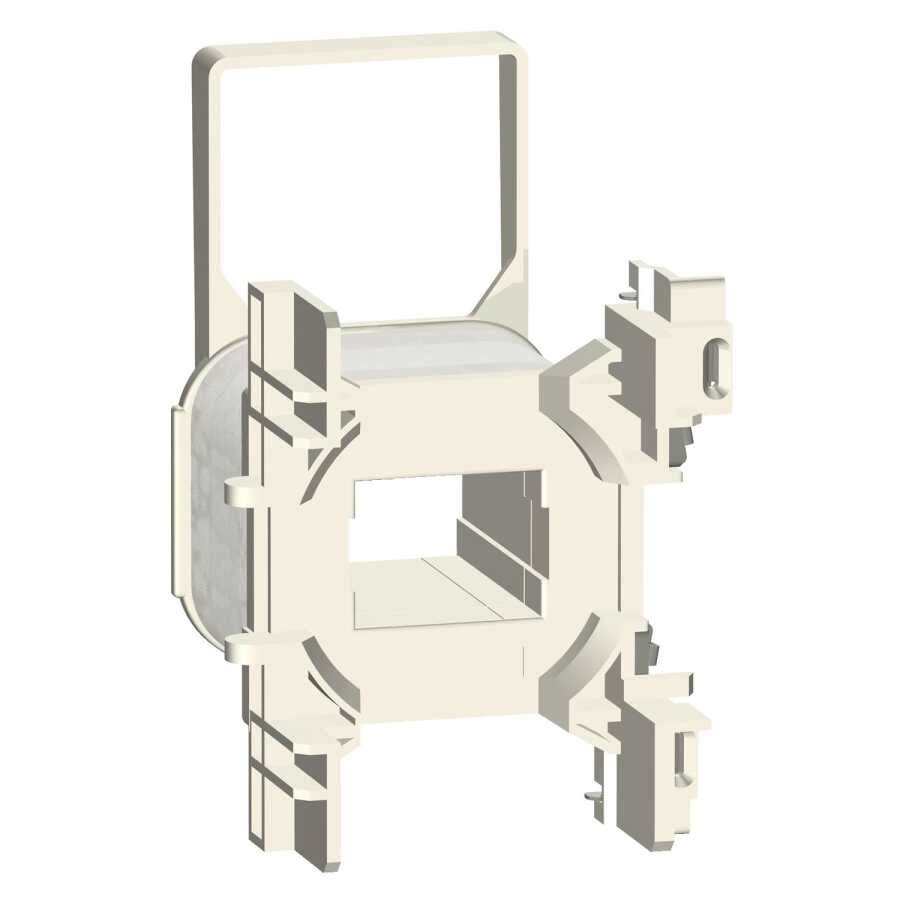

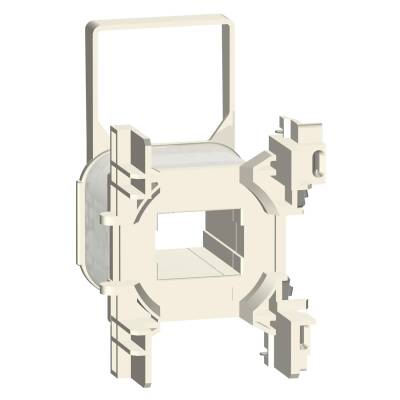

Schneider Electric LXD3D7 TeSys D Kontaktör Bobini LXD3 - 40…65 A Kontaktör için 42 V AC 50/60 Hz

Ürün Kodu : LXD3D7
Barkod : 3389119410328
(0)
Yorum Yap
1.221,18 TL
Daha Fazla Kontaktör Bobini
Main
range TeSys
Product or Component Type Contactor coil
device short name LXD3
control circuit type AC 50/60 Hz
[Uc] control circuit voltage 42 V AC 50/60 Hz
average resistance 6.18 Ohm 68 °F (20 °C)
inductance of closed circuit 0.37 H
Product Compatibility LC1DT60A
LC1DT80A
LC1D40A...D65A
mechanical durability 6 Mcycles
maximum operating rate 3600 cyc/h 140 °F (60 °C)
Complementary
coil technology Without built-in suppressor module
control circuit voltage limits Drop-out 0.3...0.6 Uc 50/60 Hz 140 °F (60 °C))
Operational 0.8...1.1 Uc 50 Hz 140 °F (60 °C))
Operational 0.85...1.1 Uc 60 Hz 140 °F (60 °C))
inrush power in VA 160 VA 60 Hz 0.75 68 °F (20 °C))
160 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA 15 VA 60 Hz 0.3 68 °F (20 °C))
15 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation 4…5 W 50/60 Hz
Environment
ambient air temperature for operation 23…140 °F (-5…60 °C)
Net Weight 0.15 lb(US) (0.07 kg)
Ordering and shipping details
Category 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule I12
GTIN 3389119410328
Nbr. of units in pkg. 1
Package weight(Lbs) 5.64 oz (160.0 g)
Returnability No
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Package 1 Height 2.28 in (5.8 cm)
Package 1 width 2.28 in (5.8 cm)
Package 1 Length 3.86 in (9.8 cm)
Unit Type of Package 2 S01
Number of Units in Package 2 12
Package 2 Weight 4.73 lb(US) (2.145 kg)
Package 2 Height 5.91 in (15.0 cm)
Package 2 width 5.91 in (15.0 cm)
Package 2 Length 15.75 in (40.0 cm)
Contractual warranty
Warranty 18 months
