Main
| Range |
EasyLogic |
| Product name |

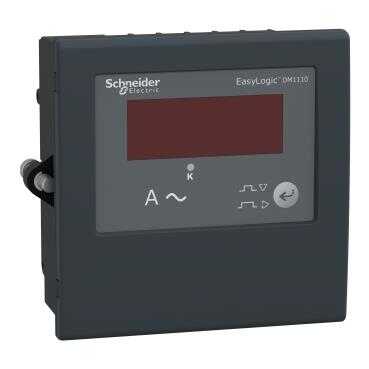

EasyLogic DM1000 |
| Device short name |
DM1110 |
| Product or component type |
Ammeter |
| Device application |
GenSet
Load control
Test laboratories |
Complementary
| Poles description |
1P + N |
| type of measurement |
Current |
| [Us] rated supply voltage |
100...230 V AC +/- 20 %
100...230 V DC +/- 20 % |
| Supply frequency |
50/60 Hz +/- 5 Hz |
| Network frequency |
50 Hz
60 Hz |
| Maximum power consumption in VA |
3 VA at 230 V AC |
| Display type |
LED |
| Display digits |
4 |
| Full scale display |
999.9 |
| Control type |
Selector switch built-in |
| Analogue input type |
Current 0...5 Asingle phase |
| Measurement current |
1/5 A, 50…6000 mA AC, 50/60 Hz +/- 5 Hz |
| Accuracy |
Current +/- 0.5 % of full scale for class 0.5 |
| device mounting |
Flush |
| Mounting support |
Panel |
| Type of installation |
Indoor |
| measurement category |
Category III |
| Standards |
IEC 61326 |
| Product certifications |
CE conforming to IEC 61010-1 |
Environment
| Electromagnetic compatibility |
Conducted and radiated emissions class A conforming to CISPR 11
Electrostatic discharge conforming to IEC 61000-4-2
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Harmonics conforming to IEC 61000-3-2
Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
| IP degree of protection |
Front panel: IP50
Body: IP30 |
| Relative humidity |
5…95 % |
| Pollution degree |
2 |
| Ambient air temperature for operation |
-10…60 °C |
| Ambient air temperature for storage |
-25…70 °C |
| Colour |
Black |
| Width |
96 mm |
| Height |
96 mm |
| Depth |
38 mm |
| Cut-out dimensions |
92 x 92 mm |
| Net weight |
175 g |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8.6 cm |
| Package 1 Width |
11.2 cm |
| Package 1 Length |
12.4 cm |
| Package 1 Weight |
265 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
24 |
| Package 2 Height |
30 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
6.89 kg |
