Gelince Sizi Arayalım| Range of product | Harmony XAL |
|---|---|

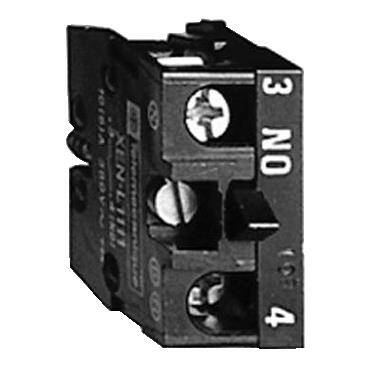

| Product or component type | Contact block |
| Device short name | XENL |
| Mounting of block | Rear mounting |
| Sale per indivisible quantity | 10 |
| Contacts type and composition | 1 NO |
| Assembly style | For customer assembly |
|---|---|
| Net weight | 0.013 kg |
| Contact operation | Slow-break |
| Positive opening | Without |
| Operating force | 1 N NO changing electrical state |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² |
| Short-circuit protection | 10 A cartridge fuse type gL conforming to IEC 60269-1 10 A cartridge fuse type gL conforming to VDE 0660-200 |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 600 V conforming to UL 508 600 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 appendix A |
| Electrical durability | 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) Λ < 10exp(-8) |
| Protective treatment | TH TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 Class II conforming to NF C 20-010 |
| IP degree of protection | IP65 conforming to IEC 60529 IP657 conforming to NF C 20-010 |
| Standards | EN/IEC 60947-1 VDE 0660-200 IEC 60337-1 NF C 63-140 |
| Vibration resistance | 15 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Warranty | 18 months |
|---|
