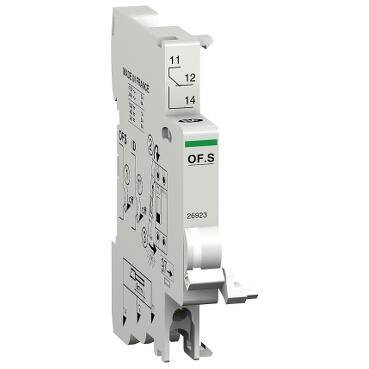

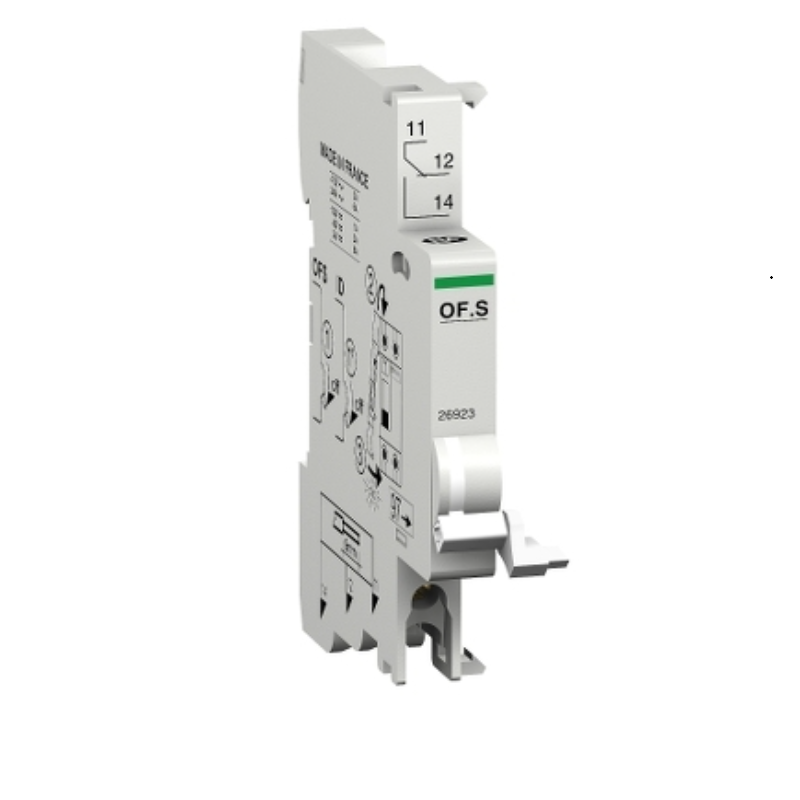

Gelince Sizi Arayalım| range of product | Multi9 |
|---|---|
| Product or Component Type | OC contact |
| Device short name | OFS |
| Signal contacts composition | 1 C/O |
| Line Rated Current | AC-12 3 A at 380...415 V, AC 50/60 Hz AC-12 6 A at 220...240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 EN 62019-2 |
| Product Certifications | NEMKO DEMKO SEMKO CEBEC FIMKO |
| Mounting Mode | Fixed |
|---|---|
| Mounting Support | DIN rail |
| Comb busbar and distribution block compatibility | Top YES |
| Height | 3.3 in (84 mm) |
| Width | 0.4 in (9 mm) |
| Depth | 2.9 in (73 mm) |
| Connections - terminals | Clamp terminal2 0.002 in² (1.5 mm²) - flexible Clamp terminal2 0.002 in² (1.5 mm²) - rigid Clamp terminal1 0.0008…0.004 in² (0.5…2.5 mm²) - flexible Clamp terminal1 0.0008…0.004 in² (0.5…2.5 mm²) - rigid |
| Wire stripping length | 0.4 in (9 mm) |
| Tightening torque | 8.9 lbf.in (1 N.m) |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
|---|---|
| Pollution degree | 3 EN/IEC 60947-5-1 |
| Tropicalisation | 2 EN/IEC 60947-5-1 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Ambient air temperature for operation | -13…122 °F (-25…50 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Category | US10DE201078 |
|---|---|
| Discount Schedule | 0DE2 |
| GTIN | 3303430269236 |
| Returnability | No |
| Country of origin | ES |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.15 in (8 cm) |
| Package 1 Width | 0.79 in (2 cm) |
| Package 1 Length | 3.74 in (9.5 cm) |
| Package 1 Weight | 1.5 oz (43 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 3.54 in (9 cm) |
| Package 2 Width | 3.94 in (10 cm) |
| Package 2 Length | 10.04 in (25.5 cm) |
| Package 2 Weight | 20.6 oz (584 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 11.81 in (30 cm) |
| Package 3 Width | 11.81 in (30 cm) |
| Package 3 Length | 15.75 in (40 cm) |
| Package 3 Weight | 12.553 lb(US) (5.694 kg) |
| Warranty | 18 months |
|---|
