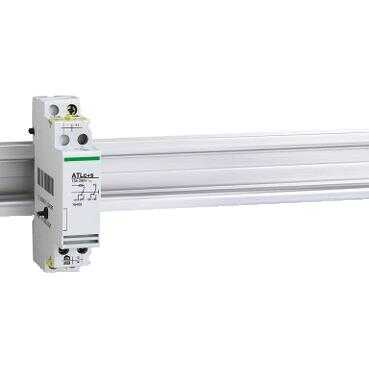

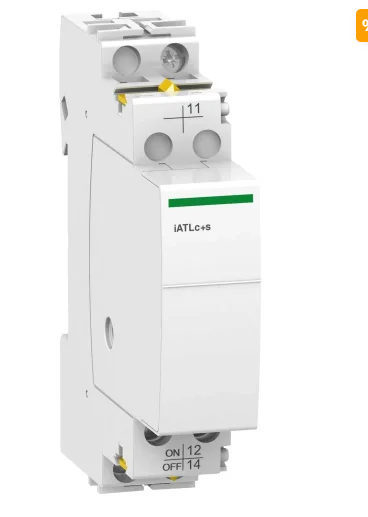

Gelince Sizi Arayalım| Device short name | ATLc+s |
|---|---|
| Product or component type | Centralized control and remote indication auxiliary |
| Signal contacts composition | 1 C/O |
| Signalling circuit voltage | 24 V DC: 0.01...6 A 48 V DC: 0.01…2 A 130 V DC: 0.01…1 A 24...240 V AC: 50/60 Hz 0.01...6 A |
| [Uc] control circuit voltage | 24...240 V AC 50/60 Hz |
| Mounting mode | Fixed, on left side of TL |
|---|---|
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Colour | Grey |
| Connections - terminals | Input connection: tunnel type terminals 2 cable(s) 2.5 mm² - flexible Input connection: tunnel type terminals 2 cable(s) 1.5 mm² - rigid Output connection: yellow clips Signalling circuit: tunnel type terminals 2 cable(s) 2.5 mm² - flexible Signalling circuit: tunnel type terminals 2 cable(s) 1.5 mm² - rigid |
| Tropicalisation | 2 |
|---|---|
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 0.077 kg |
| Warranty | 18 months |
|---|
