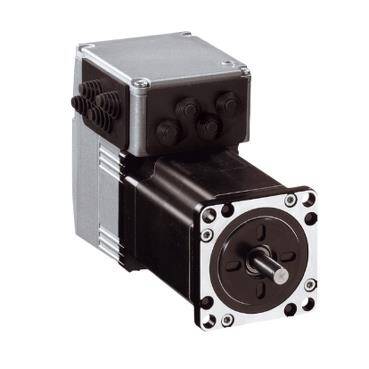

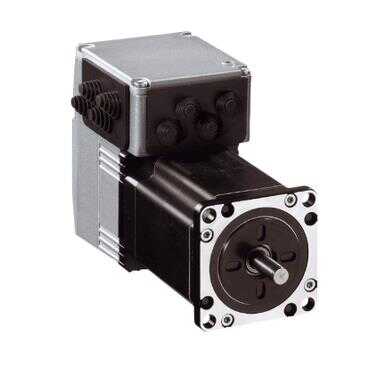

Gelince Sizi Arayalım| Range of product | Lexium integrated drive |
|---|---|
| Product or component type | Motion integrated drive |
| Device short name | ILE |
| Motor type | Brushless DC motor |
| Number of motor poles | 6 |
| Network number of phases | Single phase |
| [Us] rated supply voltage | 24 V 36 V |
| Network type | DC |
| Winding type | Medium speed of rotation and medium torque |
| Mounting support | Flange |
|---|---|
| Motor flange size | 66 mm |
| Number of motor stacks | 1 |
| Mounting holes diameter | 4.4 mm |
| Feedback type | BLDC encoder |
| Second shaft | Without second shaft end |
| Supply voltage limits | 18…40 V |
| Current consumption | 7000 mA peak 5500 mA maximum continuous |
| Associated fuse rating | 10 A |
| Input/output type | 4 signals (each be used as input or output) |
| Voltage state 0 guaranteed | -3...4.5 V |
| Voltage state 1 guaranteed | 15...30 V |
| Discrete input current | 10 mA at 24 V on/STO_A for safety input 3 mA at 24 V on/STO_B for safety input 2 mA at 24 V for 24 V signal interface |
| Discrete output voltage | 23...25 V |
| Protection type | Safe torque off Short circuit of the output voltage Overload of output voltage |
| Marking | CE |
| type of cooling | Natural convection |
| Standards | IEC 50178 IEC 50347 IEC 61800-3, Ed 2 EN 61800-3:2001, second environment EN 61800-3 : 2001-02 IEC 60072-1 IEC 61800-3 |
|---|---|
| Product certifications | cUL TÜV UL |
| Ambient air temperature for operation | 50…65 °C 0…50 °C |
| Permissible ambient air temperature around the device | 105 °C power amplifier 110 °C motor |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating |
| Vibration resistance | 20 m/s² (f= 10…500 Hz) 10 cycles conforming to IEC 60068-2-6 |
| Shock resistance | 150 m/s² 1000 shocks conforming to IEC 60068-2-29 |
| IP degree of protection | IP41 shaft bushing: conforming to IEC 60034-5 IP54 total except shaft bushing: conforming to IEC 60034-5 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.4 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 36.5 cm |
| Package 1 Weight | 3.0 kg |
| Country of origin | DE |
|---|
| Warranty | 18 months |
|---|
