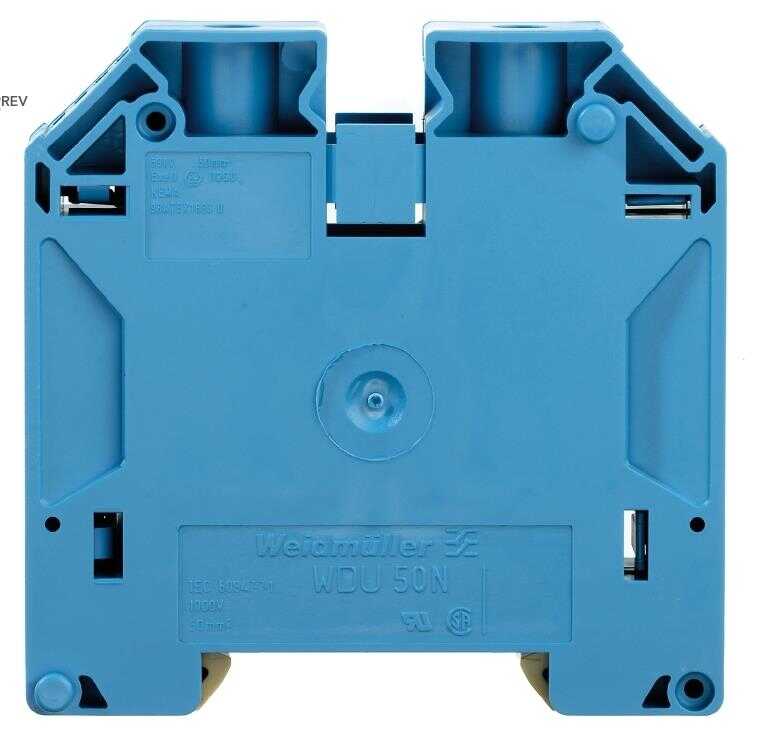

WEIDMULLER 1820850000,Geçiş klemensi, Vidalı bağlantı, 50 mm², 1000 V, 150 A, mavi

Name: WEIDMULLER 1820850000,Geçiş klemensi, Vidalı bağlantı, 50 mm², 1000 V, 150 A, mavi
Brand: Weidmüller
SKU: W1820850000
Price: 424.79 TRY
Availability: OutOfStock

Ürün Kodu : W1820850000

Barkod : 4032248317806

(0)

Yorum Yap

424,79 TL

Tükendi / Dilerseniz bu ürünü sizin için getirebiliriz!

Gelince Sizi Arayalım

Toplu İndirim İste / Aradığınız Ürünü Sizin için Getirelim! Fiyat Alarmı

Daha Fazla Klemens

General ordering data

Version	Feed-through terminal, Screw connection, 50 mm², 1000 V, 150 A, blue
Order No.	1820850000
Type	WDU 50N BL
GTIN (EAN)	4032248317806
Qty.	10 pc(s).

Dimensions and weights

Depth	69.6 mm
Depth (inches)	2.74 inch
Depth including DIN rail	70.6 mm
Height	70 mm
Height (inches)	2.756 inch
Width	18.5 mm
Width (inches)	0.728 inch
Net weight	80.443 g

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	DEMKO14ATEX1338U
Certificate No. (IECEX)	IECEXULD14.0005U
Max. voltage (ATEX)	690 V
Current (ATEX)	126 A
Wire cross section max. (ATEX)	50 mm²
Max. voltage (IECEX)	690 V
Current (IECEX)	126 A
Wire cross section max. (IECEX)	50 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7	Ex eb II C Gb
Ex 2014/34/EU label	II 2 G D

System specifications

Version	Screw connection, for screwable cross-connection, in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	Yes
PE function	No
PEN function	Yes

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Cross-section for connected wire, stranded, two clampable wires, max.	16 mm²
Cross-section for connected wire, stranded, two clampable wires, min.	6 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	16 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	6 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	6 mm²
Wire cross-section, finely stranded, two clampable wires, max.	16 mm²
