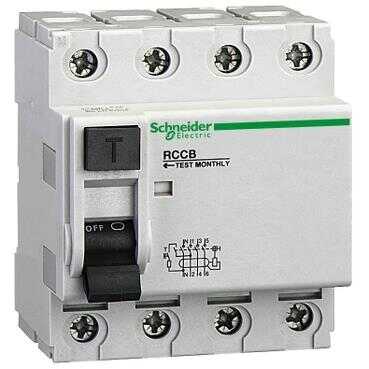

Gelince Sizi Arayalım| Product or component type | Residual current circuit breaker (RCCB) |
|---|---|
| Device short name | ID RCCB |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 40 A |
| network type | AC |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type A |
| Rated breaking and making capacity | Im = 1500 A conforming to IEC 61008 |
| Rated conditional short-circuit current | Idm 2.5 kA 40 A |
| Utilisation category | AC-23A conforming to IEC 60947-3 |
| Device location in system | Outgoer |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 230/400 V |
| [Ui] rated insulation voltage | 440 V conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-3 |
| Connection pitch | 18 mm between phases |
| 9 mm pitches | 8 |
| Product weight | 0.45 kg |
| Colour | Grey |
| Mechanical durability | 20000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminals35 mm² flexible Tunnel type terminals50 mm² rigid |
| Standards | IEC 60947-3 IEC 61008 IEC 60947-1 |
|---|---|
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…40 °C |
| Ambient air temperature for storage | -40…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 0.354 kg |
| Warranty | 18 months |
|---|
