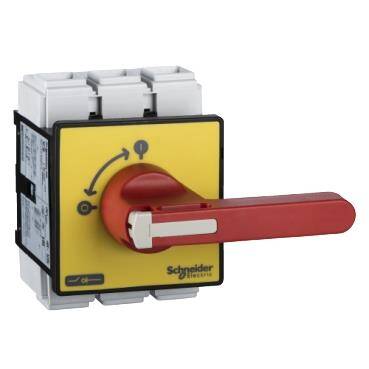

Product Name | TeSys VARIO |
Device Short Name | VCF |
Product Type | Acil durdurma yük ayırıcısı |
Device Composition | Anahtar Kol |
---|---|
Mounting Support | Kol: kapı Anahtar: kapı |
Mounting Method | 4 vidayla için kol |
Performance Level | Yüksek performans |
Number of Poles | 3P |
Contact Type and Composition | 3 NA |
[Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
IEC Rated Operational Power in W | 22 kW -de 230...240 V (AC-3) 30 kW -de 400...415 V (AC-3) 30 kW -de 690 V (AC-3) 37 kW -de 500 V (AC-3) 37 kW -de 690 V (AC-23A) 45 kW -de 500 V (AC-23A) 22 kW -de 230...240 V (AC-23A) 37 kW -de 400...415 V (AC-23A) |
[Ie] Rated Operational Current | 68,5 A AC-23 Ue: 400 V |
[Ith] Conventional Free Air Thermal Current | 125 A |
[Ithe] Conventional Enclosed Thermal Current | 100 A |
Making Capacity ( I Rms) | 1250 A -de 400 V AC-21A 1250 A -de 400 V AC-22A 1250 A -de 400 V AC-23A |
Breaking Capacity | 1000 A -de 400 V (AC-21A) 1000 A -de 400 V (AC-22A) 1000 A -de 400 V (AC-23A) |
Rated Conditional Short Circuit Current | 10 kA -de 400 V - ilgili sigorta 125 A aM 10 kA -de 400 V - ilgili sigorta 125 A gG |
[Icm] Rated Short Circuit Making Capacity | 2,8 kA -de 400 V Itepe'de |
[Icw] Rated Short Time Withstand Current | 1500 A -de 400 V 1 s |
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Suitability for Isolation | Evet |
Network Type | AC DC |
Intermittent Duty Class | 30 |
Control Type | Döner kol |
Rotary Handle Mounting Style | Doğrudan |
Handle Color | Kırmızı |
Handle Front Plate Color | Sarı |
Rotary Handle Padlocking | 1 ila 3 asmalı kilit 4…8 mm |
Marking | 0 - 1 |
Mechanical Durability | 30000 cycles |
Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
IEC Terminal Connection | Güç devresi: vida kelepçesi terminalleri kablo 95 mm² - kablo sertligi: katı Güç devresi: vida kelepçesi terminalleri kablo 70 mm² - kablo sertligi: esnek - Kablo uçlu |
Tightening Torque | Güç devresi: 22,6 N.m - üzerinde vida kelepçesi terminalleri |
Base Dimension | 90 x 90 mm |
Height | 125 mm |
Width | 90 mm |
Product Weight | 1,2 kg |
Standards | IEC 60947-3 |
---|---|
Product Certifications | CCC CSA GL UL UKCA |
Degree of Protection | IP20 'e uygunIEC 60529 IP65 |
Protective Treatment | TC |
Mechanical Robustness | Titreşimler 10...150 Hz (1 gn) 'e uygunIEC 60068-2-6 Şoklar 11 ms (30 Gn) 'e uygunIEC 60068-2-27 |
Ambient Air Temperature for Operation | -20…50 °C |
Fire Resistance | 960 °C 'e uygunIEC 60695-2-1 |
Compatibility Code | Ana yük ayırıcı |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 10 cm |
Package 1 Width | 17 cm |
Package 1 Length | 17,5 cm |
Package 1 Weight | 1,065 kg |
Unit Type of Package 2 | P06 |
Number of Units in Package 2 | 50 |
Package 2 Height | 75 cm |
Package 2 Width | 80 cm |
Package 2 Length | 60 cm |
Package 2 Weight | 61,25 kg |
Garanti | 18 months |
---|
