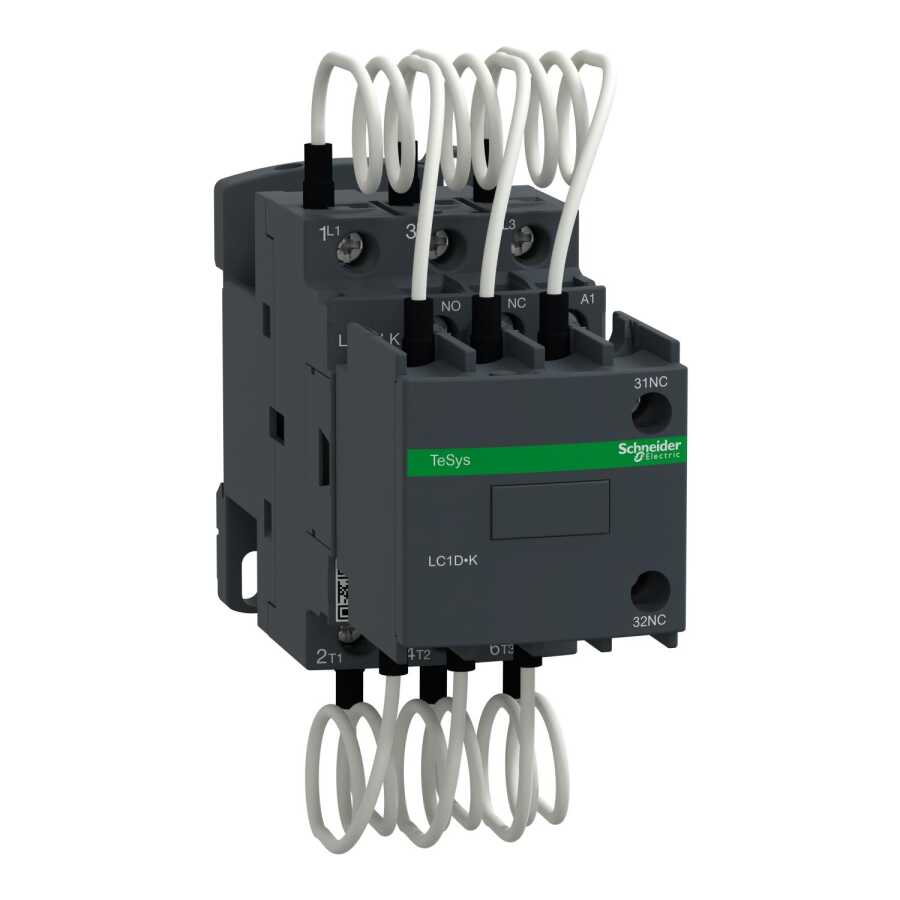

Schneider Electric LC1DLKM7 Capacitor contactor, TeSys D, 20 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz

Ürün Kodu : LC1DLKM7
Barkod : 3606480401824
(0)
Yorum Yap
2.070,34 TL

Tükendi / Dilerseniz bu ürünü sizin için getirebiliriz!

Gelince Sizi Arayalım
Daha Fazla Kontaktör
Main
range TeSys
TeSys Deca
product name TeSys LC1D.K
TeSys Deca
product or component type Capacitor duty contactor
device short name LC1DLK
device application Control
contactor application Power factor correction
utilisation category AC-6b
poles description 3P
power pole contact composition 3 NO
device location in system Line interruption
Inside delta interruption
[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
reactive power rating 11 kvar at 230 V AC 50 Hz 60 °C
20 kvar at 400 V AC 50 Hz 60 °C
21 kvar at 440 V AC 50 Hz 60 °C
33 kvar at 690 V AC 50 Hz 60 °C
control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
auxiliary contact composition 1 NO + 2 NC instantaneous
electrical durability 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
mounting support DIN rail
Plate
standards EN/IEC 60947-1
EN/IEC 60947-4-1
IEC 60335-1
product certifications IECEE CB Scheme
UKCA
connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
tightening torque Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 2.5 N.m - on screw clamp terminals
maximum operating rate 240 cyc/h
Complementary
auxiliary contacts type Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection IP20 front face conforming to IEC 60529
ambient air temperature for operation -5…60 °C
ambient air temperature for storage -60…80 °C
operating altitude 0...3000 m
height 125 mm
width 45 mm
depth 127 mm
net weight 0.6 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 608.0 g
Package 1 Height 6.6 cm
Package 1 width 19.4 cm
Package 1 Length 22.6 cm
Unit Type of Package 2 P06
Number of Units in Package 2 48
Package 2 Weight 43.388 kg
Package 2 Height 77.0 cm
Package 2 width 80.0 cm
Package 2 Length 60.0 cm
Unit Type of Package 3 S03
Number of Units in Package 3 6
Package 3 Weight 4.118 kg
Package 3 Height 30.0 cm
Package 3 width 30.0 cm
Package 3 Length 40.0 cm
Contractual warranty
Warranty 18 months
