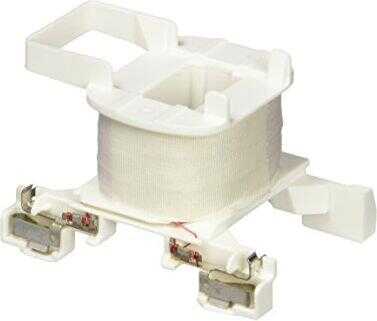

Schneider Electric LXD1E7 TeSys D - Kontaktör Bobini LXD1 - 9

Name: Schneider Electric LXD1E7 TeSys D - Kontaktör Bobini LXD1 - 9
Brand: Schneider
SKU: LXD1E7
Price: 271.09 TRY
Availability: OutOfStock

Ürün Kodu : LXD1E7

Barkod : 3389110467710

(0)

Yorum Yap

271,09 TL

Tükendi / Dilerseniz bu ürünü sizin için getirebiliriz!

Gelince Sizi Arayalım

Toplu İndirim İste / Aradığınız Ürünü Sizin için Getirelim! Fiyat Alarmı

Daha Fazla Kontaktör

Main
range	TeSys
product or component type	Contactor coil
device short name	LXD1
control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	48 V AC 50/60 Hz
average resistance	21.7 Ohm at 20 °C
inductance of closed circuit	0.87 H
product compatibility	LC1DT20...DT40 LC1D09...D38 CAD
mechanical durability	15 Mcycles
maximum operating rate	3600 cyc/h 60 °C

Complementary
coil technology	Without built-in suppressor module
control circuit voltage limits	Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
inrush power in VA	70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C)
hold-in power consumption in VA	7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7 VA 50 Hz cos phi 0.3 (at 20 °C)
heat dissipation	2…3 W at 50/60 Hz

Environment
ambient air temperature for operation	-5…60 °C
net weight	0.07 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	76.0 g
Package 1 Height	4.4 cm
Package 1 width	6.3 cm
Package 1 Length	4.0 cm
Unit Type of Package 2	S02
Number of Units in Package 2	100
Package 2 Weight	7.918 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
